Heavy Duty Archdale Pillar Drill
5 Morse Taper (Now In)

Machines & Accessories
Now In

Gate PBM 2000 Varyspeed
Turret Mill

Gate Turret Mill
the Purchased new in 2005, it has all the extras,
with a 2 axis digital readout, powerfeeds and rapids
to the 'x' axis and also the 'y' axis, variable speeds
from 60 to 4200 rpm, the bed is unmarked, the tee slotted
bed measures 1080mm x 230mm, it has power lubrication,
pneumatic power drawbar, coolant supply wiyth splash tray.
the overall dimensions are 1350mm wide x 1350mm deep
x 2280mm high, it weighs about 1150 kg
£2850.00 (No Vat to pay)

Utting 10' Horizontal Bandsaw

Utting 10' Horizontal Bandsaw

10' solid roundbar or 10' square box,
swivel vice for mitre cutting, Hydraulics
in very good condition

£950.00 (No Vat to pay)

Inverters
240 volts single phase input with 415 volts 3phase output

Bridgeport Turret Mill

Bridgeport Turret Mill
2 axis digital readout, 16 speed head, 2 speed motor,
powerfered to table in the 'x' axis, 42' x 9' table,
Machine light and coolant

£2450.00 (No Vat to pay)

Inverters
240 volts single phase input with 415 volts 3phase output

Harrison M400 Centre Lathe

Has been in regular use up until now, good range
of equipment, chucks and jaws, fixed steady,
Dixon quick-change toolpost, doesn't look to worn,
runs in all speeds and feeds. Untidy paint,
but easily put right
Come and have a test drive!
£1850.00 (SOLD)

Inverters
240 volts single phase input with 415 volts 3phase output

EXE Surface Grinder

Good solid surface grinder, hand operated,
240 volt machine light, 3 phase main motor,
rise and fall head with a lovely feel to it, New
wheels in the box and also spare wheel carriers,
with magnetic chuck and has a dust extractor fan
housing built onto back of mainbody,
the machine is in quite good condition
£650.00 (SOLD)

You are welcome to see this grinder running, ring to arrange this.

You can collect it yourself and I can load free of charge
with our forklift.

delivery can be easily arranged. Ring me about this.
I prefer payment by Cash, debit cards, or bank transfer...

Inverters
240 volts single phase input with 415 volts 3phase output

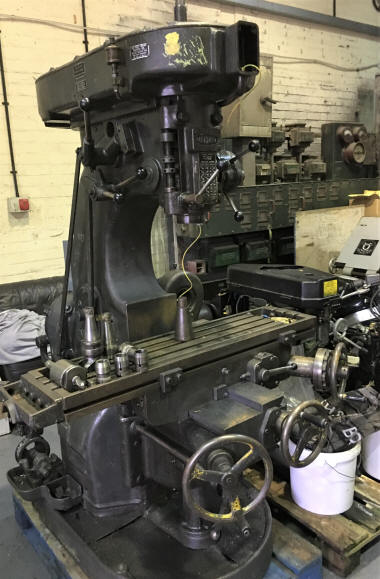

Archdale Vertical Milling Machine

Quite heavy duty machines these, very rigid,
40 international spindle fitting quiet runner,
power feed to table, pull down quill,very reliable
machines, this one comes with a good
selection of tooling, more than seen in the picture.

£875.00 (No Vat to pay)

You are welcome to see this mill running, ring to arrange this.

You can collect it yourself and I can load free of charge
with our forklift.

delivery can be easily arranged. Ring me about this.
I prefer payment by Cash, debit cards, or bank transfer...

Inverters
240 volts single phase input with 415 volts 3phase output

Quantity of machine tooling on a pallet
(May suit exporter)

Various machine tooling as seen on pallet, more
coming in Wednesday 28th Nov

More tooling was collected today (Thursday)
approx. 2 tons, large chucks 3 jaw and 4 jaw,
large faceplates mainly camlock fitting.
some earlier faceplates with the thread on the
back for early Colchester machines
Toolpost holders, Toolposts.

Another load of tooling approx. 2 tons to be collected
Monday next

Tom Senior Vertical Milling Machine
Turret Type Head

Ex-School machine collet chuck machine vice,
feels very nice on the slides, this one has the turret head,
full horizontal setup & Digital readout

£2250.00 (SORRY SOLD FROM SITE)

You are welcome to see this mill running, ring to arrange this.

You can collect it yourself and I can load free of charge
with our forklift.

delivery can be easily arranged. Ring me about this.
I prefer payment by Cash, debit cards, or bank transfer...

Inverters
240 volts single phase input with 415 volts 3phase output

Chester Mill Drill

One Owner Machine with D.R.O.

Comes from a very good home, model maker, with digital readout,
on the manufacturers stand complete with some tooling (He Kept the vice)
rise and fall head, one owner from new with collet chuck and collets
range of milling cutters and an instruction manual

£650.00 (No Vat to pay)

You are welcome to see this mill running, ring to arrange this.

You can collect it yourself and I can load free of charge
with our forklift.

delivery can be easily arranged. Ring me about this.
I prefer payment by Cash, debit cards, or bank transfer...

Alfred Herbert Single Spindle
Drilling Machine

These are the types of drill you only buy once, its lasted a lifetime and it will
last another lifetime. 3 phase 415 volts 2 speed gearbox 4 speed motor,
rise and fall table which stays in position on a dovetail,
rise and fall head also on a dovetail,
3 morse taper to the spindle chuck guard will drill 11/4' hole

£575.00 (Now Sold)

You are welcome to see this drill running, ring to arrange this.

You can collect it yourself and I can load free of charge
with our forklift.

delivery can be easily arranged. Ring me about this.
I prefer payment by Cash, debit cards, or bank transfer...

Inverters
240 volts single phase input with 415 volts 3phase output

=

22' Faceplate

22' Faceplate, D1-6 Fitting
Colchester Triumph, Harrison & DSG, etc..
£125.00..(No V.A.T.)

INVERTERS
Operate 3 phase machinery from a normal
240 volt single phase supply

The easy answer to using 3 phase machinery
in the single phase workshop

240 volt single phase input, 240 volt and 415 volt
3 phase output,
suitable for all machinery with 3 phase motors.

Dual voltage motors are motors that can be changed over
simply in the terminal box to operate on either
240 volt 3 phase or 415 volt 3 phase
(It will state this clearly on the motor plate)
Inverters for dual voltage motors are cheaper

Inverters with 415 volt output also available

Ring me to discuss this if you are confused
Most modern motors are suitable

These inverters allow full direct control of the motor
and all of its operating characteristics......
start up, build up of speed, variation of speed,
motor overload protection and braking.

If you have an 8 speed gearbox you will have
variable speeds in between each gear
or right through the range
No need to rewire the machines electrics to suit
as you can connect direct to the motor terminals

Available sizes (rating)
0.37 kw (1/2 h.p.)
0.55 kw (3/4 h.p.)
0.75 kw (1.0 h.p.)
1.1 kw (1.5 h.p.)
1.5 kw (2 h.p.)
2.2 kw (3 h.p.)
3.0 kw (4 h.p.)
4.0 kw (5.5 h.p.)

Prices start from £85.00..(no v.a.t. to add)

Motors suitable for use with these Inverters
are also available new, email if you need one

The Machines Below Were
Sold Recently
Left on the site to give you an idea
of our pricing policy

Rollerdraw cabinets

Dirty inside and out, knocks on them here and there
£75.00 each (SOLD)

Turret VarySpeed
Turret Milling Machine

£2650.00..).(SOLD)

Bridgeport Varyspeed Milling Head

Variable speeds, R8 spindle fitting, with mounting
bracket and studs
£750.00 (SOLD)

Tom Senior M1
Horizontal Milling
Machine

Tom Senior M1 horizontal milling machine
as removed from a workshop following retirement,
has been repainted nicely at sometime, but not recently,
Powerfeed to the table with auto knock-off,
The machine looks as though it has been stood for a while,
the coolant is stale, I have tested the machine on one of the
inverters that I use in my workshop

£750.00 (No V.a.t. to add)
(SOLD)

Semco 3VS Heavy Duty
Turret Milling Machine

Semco 3VS heavy duty turret milling machine,
Millvision 2 axis digital readout system, powerfeeds
and rapid traverses, Variable spindle speeds and powerdown
feed to head, 40 international tooling to spindle,
quiet running machine, machine light, 3 h.p. 3 phase motor
strong and capable machine, with some tooling

(SOLD)

Folk Theatre on 'Swami Vivekananda' English subtitles. The light swami vivekananda movie download hd.

Victoria Horizontal/Vertical
Milling Machine
Horizontal & vertical , imperial dials, coolant supply
3 phase motor, with horizontal arbor & spacers

£850.00

(SOLD)

Bridgeport Slotting Head

Standard Bridgeport Slotting attachment, 3 phase
dual voltage motor, 6 speeds between 60 & 350 strokes/min

£650.00..(No v.a.t. to add)
(SOLD)

Union Tool & Cutter
Grinder

Standard machine on the makers cabinet, good range of
tooling, with an instruction manual, 3 phase motor which is
Dual Voltage 240/440 3 phase
The machine splits from the base easily for transport in
a smaller vehicle or trailer

£550.00..(SOLD)

Bridgeport EZ-Trak CNC
Series 1 Turret Mill

Series 1 Bridgeport fitted with the EZ-Trak CNC system,
Manual and CNC operation, Varyspeed head up to 3750 rpm,
Full rack of internation 30 quick-change tooling,
I have had the head running and it is very quiet,
some machining marks on the table, tilt/swivel head with
3 speed powerdown feed, 41' x 9' tee slot table,
I have not run the CNC side as I am not CNC literate, I welcome
interested parties to come and test it for themselves, the top screen
comes on OK when powered up and it has the operation manuals
with it

£2250.00..(SOLD)

XYZ KRV2000 Turret
Milling Machine

2 axis Newall Saphire digital readout, Varyspeed Head,
Variable speeds to 3750rpm, 3 phase motor, powerfeed to table,
power down feed to the head R8 spindle taper, tilt & swivel head,
coolant supply and splash tray, with instruction manual.

£1950.00..(SOLD)

Tom Senior M1
Universal Milling Machine

Horizontal & Vertical
Swivelling vertical head marked in degrees, with 2 morse taper to the spindle,
3 morse taper to the horizontal spindle, 240 volt single phase motor forward/reverse
Later machine with oil bath type 3 speed powerfeed drive to the table,
tee slot table measures 715 mm x 165 mm, the tray measures 960 mm x 710 mm,
the table including the handle measures 950 mm, the base is 725 mm x 535 mm,
and the height is 1660mm. there are 12 spindle speeds.

£1250.00..(Now Sold)

Edwards Sheet Metal
Slip Rolls


Handy set of triple 2' rolls x 36' with wire forming grooves,
overall sizes 50' wide x 24' deep (at the feet) x 39' high

£350.00..(SOLD)

Cazeneuve HBX 360
Toolroom Centre Lathe

Cazeneuve 360 HBX

A very compact lathe, this is the top of the range HBX model, 360mm swing over bed,
5 morse taper to the capstan style tailstock, Anilam Spirit 2, two axis digital readout,
screw cutting and powerfeeds to the carriage and crosside,
it has the most comprehensive screwcutting range that I have ever seen on any lathe.
with 120 metric pitches and 60 imperial pitches, with micro adjustable stops on the crosslide to
enable fine depth of cut control when threading, fully variable speed control through 4 ranges
from 50 rpm right up to 3000 rpm, 2 chuck guards and a rear splash guard (not seen in photo) bed stop,
4 way toolpost, coolant supply. Machine manual, Good range of tooling seen in photo,
4 jaw chuck, faceplate (nicely finished by owner)
overall dimensions are 74” long x 37” deep x 56” high to top of DRO box.

£2650.00..(SOLD)

Aciera F4 Universal
Milling Machine

Aciera F4 Universal milling machine

A very compact machine with 30 international spindle fitting and a good range of tooling,
Anilam Wizard 2 axis digital readout (the readout box has a 3^rd axis axis capability so this could
be added later if needed, pull down quill and also fine feeds handle to quill, swivelling head
marked in degrees, 42 spindle speeds through 4 gear ranges which is fully variable,
32 speed powerfeed gearbox fully variable powerfeeds and rapid traverses to table and also knee,
32” x 10” tee slot table, imperial dials, also imperial and metric option on the digital readout,
the overall dimensions are 44” wide x 38” deep x 63” high

£2550.00..(SOLD)

Denford Cyclone
CNC Lathe

Denford Cyclone CNC Lathe

135mm centre height, slant bed with 6 station active turret,
Fanuc OT controller. 3 phase, overall dimensions 60' high x
46' wide x 46' deep, coolant supply, instruction manuals,
power supply unit measures 12' x 24' x 26' and stands at
the side of the machine, as yet untested as I am not
CNC literate was recently removed from a hobby workshop
so you are welcome to come along and
test it for me, comes with about 10 pieces of turret tooling,
drillholders and tipped tools etc.

£2250.00..(SOLD)

Tom Senior M1
Universal Milling Machine

Horizontal & Vertical
Swivelling vertical head marked in degrees, with 2 morse taper to the spindle,
1 h.p. 3 phase dual voltage 220/380/420 volt motor, ideal for running on standard
415 volts 3 phase, or 220 volts 3 phase with inverter, or very easy to change
the motor to single phase. 3 speed powerfeed drive to the table, coolant pump,
tee slot table measures 715 mm x 165 mm, dials read up to 5.0 so I have presumed
they are metric dials, the tray measures 960 mm x 710 mm, the table including the
handle measures 950 mm, the base is 725 mm x 535 mm, and the height is 1660mm.
there are 12 spindle speeds. the motor is not wired, it was previously run on inverter
so motor voltage is set to 240 volts 3 phase, let me know how you intend to configure
the motor.

£1150.00..(Now Sold)

Tom Senior 'E'
Turret Milling Machine

Swivel head, 25' x 5' tee slot table, 4 spindle speeds
500 to 2800 rpm, pull down quill with fine feeds,
rise and fall head with a good working height of about
15 inches when the head is fully raised, imperial dials,
240 volt 1/2 h.p. single phase motor,
cabinet measures 27' x 22',
the total height with head fully raised is 81'
£1150.00..(SOLD)

<script type='text/javascript'>
var _gaq = _gaq [];
_gaq.push(['_setAccount', 'UA-29615423-1']);
_gaq.push(['_setDomainName', 'premiermachinetools.co.uk']);
_gaq.push(['_setAllowLinker', true]);
_gaq.push(['_trackPageview']);
(function() {
var ga = document.createElement('script'); ga.type = 'text/javascript'; ga.async = true;
ga.src = ('https:' document.location.protocol ? 'https://ssl' : 'http://www') + '.google-analytics.com/ga.js';
var s = document.getElementsByTagName('script')[0]; s.parentNode.insertBefore(ga, s);
})();
</script>
